Description

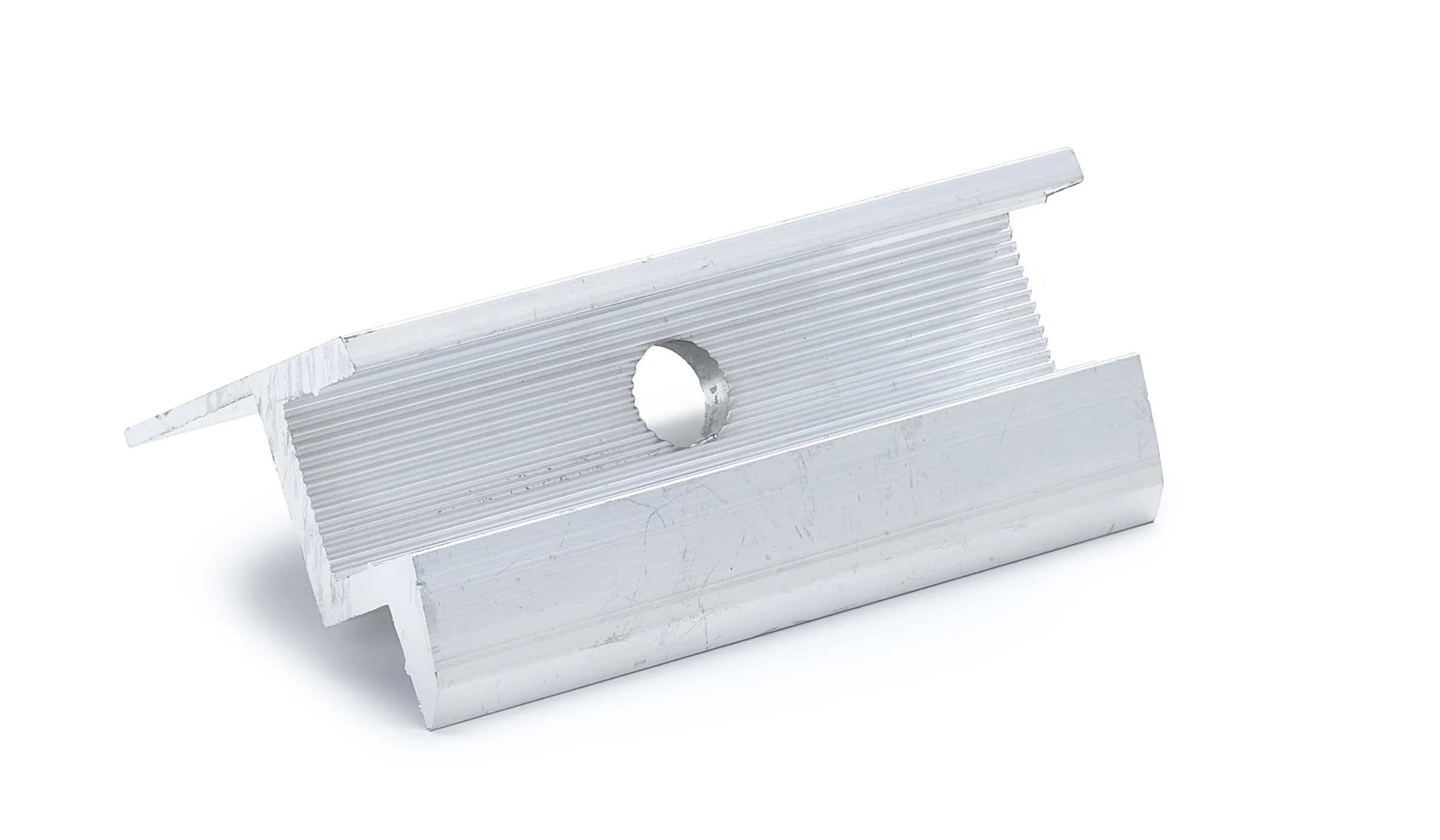

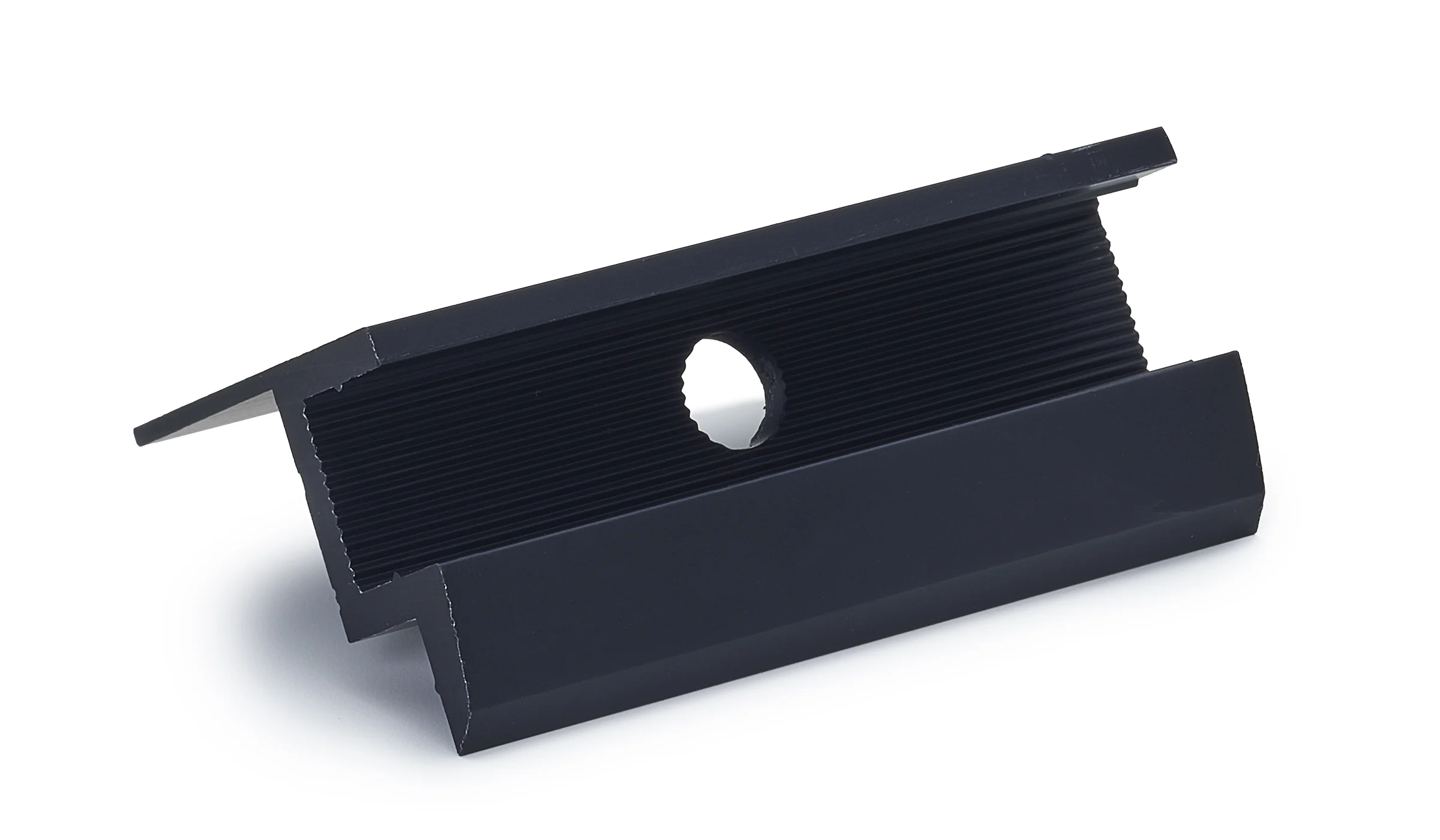

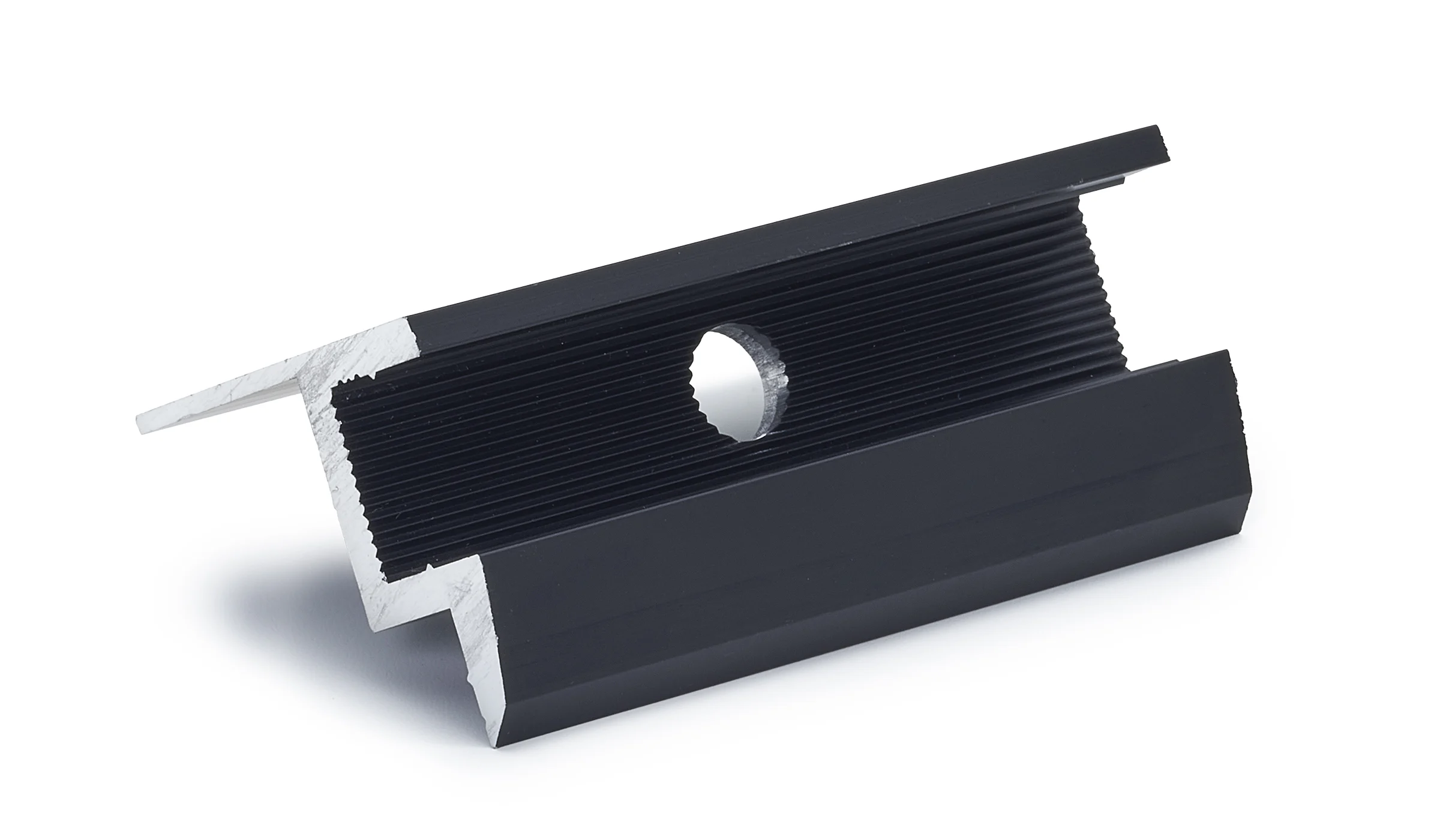

End clamp for framed PV modules. Please select the end clamp to match the frame thickness of your PV module. We offer end clamps for almost all frame thicknesses. Frame thicknesses not available in the shop can usually be cut from longer clamps for you.
The end clamp is screwed into the slot nut with a cylinder head screw (hexagon socket), which is clicked into the upper channel of the mounting profile. A 9250-2-8.4 lock washer can generally always be used; depending on the module frame thickness and screw length, it may also be necessary to prevent the screw from hitting the profile base. Please refer to the following table for the corresponding screw length.
| Module height | Screw | Lock washer |
|---|---|---|
| 28 mm | Allen screw (hexagon socket) M8x30 | |
| 30 mm | Allen screw (hexagon socket) M8x35 | x |
| 32 mm | Allen screw (hexagon socket) M8x35 | |
| 34 mm | Allen screw (hexagon socket) M8x35 | |
| 35 mm | Allen screw (hexagon socket) M8x40 | x |
| 36 mm | Allen screw (hexagon socket) M8x40 | x |
| 38 mm | Allen screw (hexagon socket) M8x40 | |
| 40 mm | Allen screw (hexagon socket) M8x45 | x |
| 41 mm | Allen screw (hexagon socket) M8x45 | x |
| 42 mm | Allen screw (hexagon socket) M8x45 | |
| 45 mm | Allen screw (hexagon socket) M8x5 | x |
| 46 mm | Allen screw (hexagon socket) M8x50 | x |
| 50mm | Allen screw (hexagon socket) M8x55 | x |
