Connect Basic | thrust load/relief screw
93,10 € – 248,90 €Price range: 93,10 € through 248,90 €
- Countersunk wood construction screws for screwing the additional bracket to the roof hook fastening.
Attachment of a third relief screw
In addition to the roof hooks, it is important to fasten the counter battens to the roof with an additional screw, if this has not already been done on site, in order to absorb the downslope forces caused by the PV system. The relief screw is positioned at a distance of at least 40 mm above the roof hooks and screwed at an angle of 60°. Our Connect Basic roof hook bracket can be used to simplify screwing at the correct angle and for additional connection to the roof hook.
Verpackungseinheiten
Auf vollständige Verpackungseinheiten gewähren wir Rabatt. Ihre Bestellung wird folgendermaßen aufgeteilt:
Description

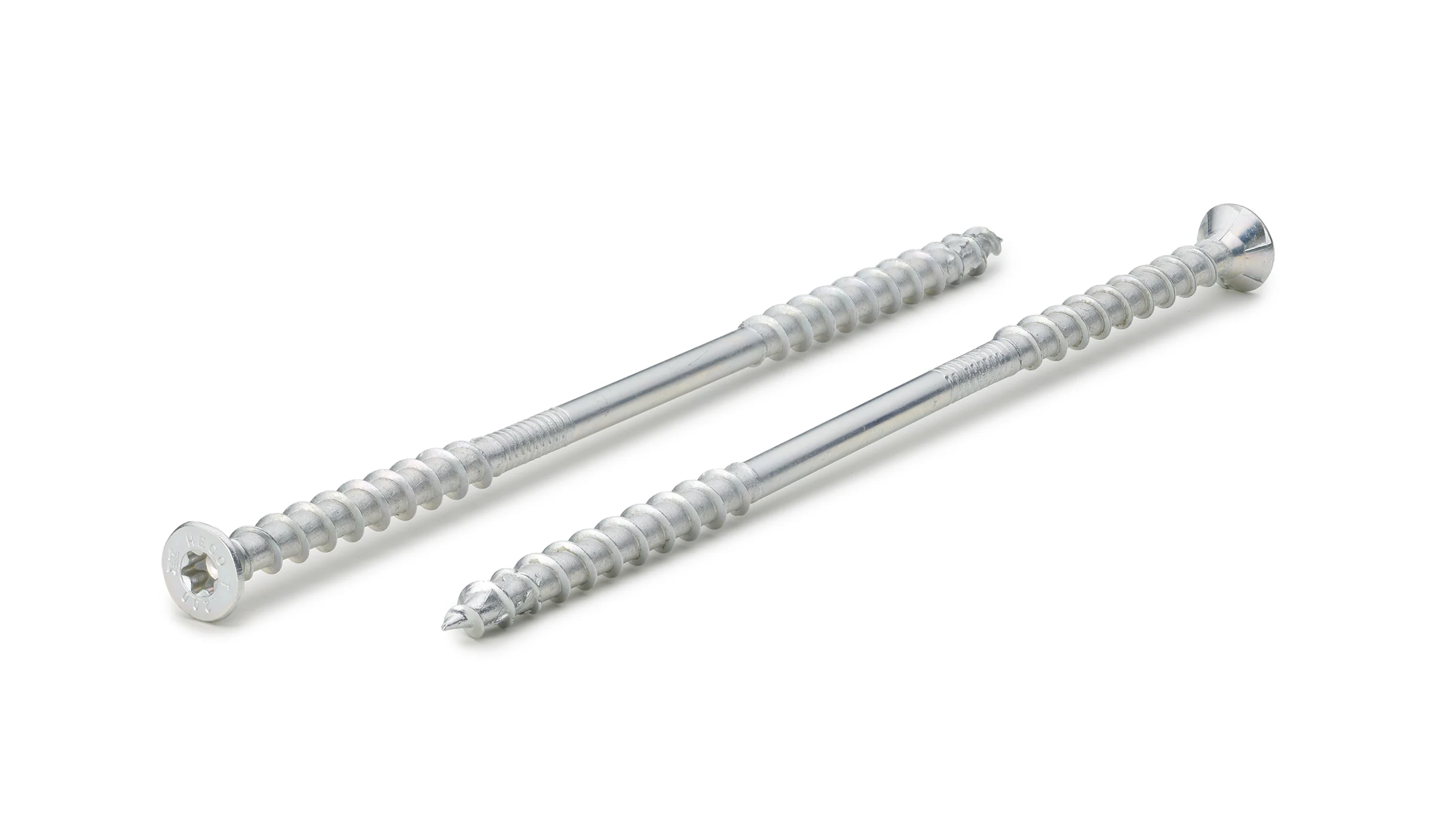

Countersunk wood building screws. Available in the following versions:
- 8.0*240 mm – generally suitable for 80 mm thick insulation
- 8.0*260 mm – generally suitable for 100 mm thick insulation
- 8.0*300 mm – generally suitable for 120 mm thick insulation
- 8.0*340 mm – generally suitable for 140 – 160 mm thick insulation
- 8.0*400 mm – generally suitable for 180 – 200 mm thick insulation
With cutting notch, ETA approval | partially threaded (80mm wood thread) | TX40 drive | A2 stainless steel
For use when mounting on tiled roofs with above-rafter insulation for diagonal screwing (240mm length suitable for ~80mm insulation thickness).
As a rule, the additional bracket for the roof hook fastening is screwed to it.
Only sold per 100 pieces (price is per PU).
